Products

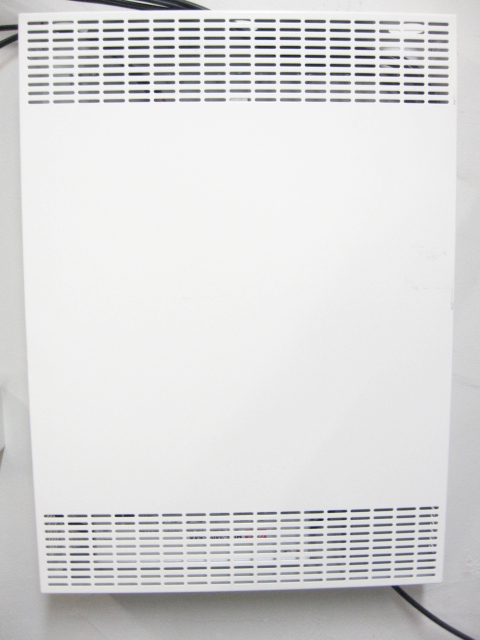

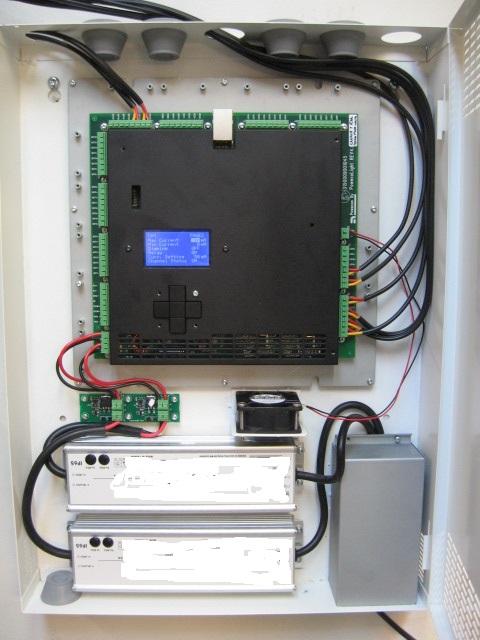

Led Light Center Powecolight

Model Powecolight

See specification: Powecolight_Specification

Perfect solution for small detached house

- Input voltage range 100-240VAC 50/60Hz

- Ambient temperature -10C - +40C

- 16 led outputs

- 20 push button inputs

- Every output can be configured to every input

- 0-700mA output current. Min and max values 50mA steps.

- Dimming for every output channel. Dimming can switched off

to get normal on off function. By setting for example min value 50mA and max value

300mA output current can change between 50-300mA during dimming.

- Using separate relay card it is possible to switch line voltage devices

max 16A 230VAC resistive load.

- Output channel voltage max 58VDC.

- max output power 480W (all channels calculated together)

- RS485 bus, possible baud rates 2400,4800,9600,19200 baud rate

- LCD display

- Over temperature protection (Output power is reduced if temperature is too high)

- Fullfill EN 55015 emission.

Contact us for more information!

Puh: 040 5867444

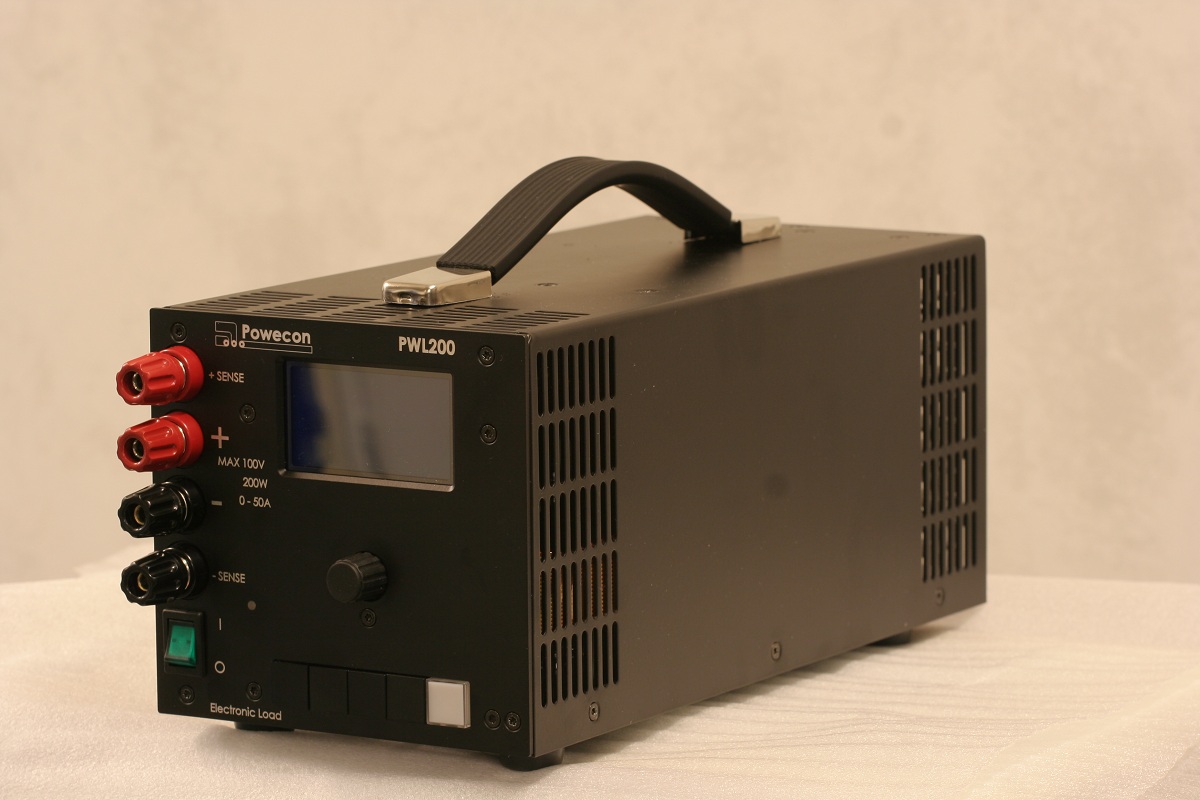

Electronic loads

Model PWL200 200W max60VDC 0-50A

See datasheet: PWL200_Specification

Now available 500VDC model PWL200HV 200W max500VDC 0-10A!

Contact us for more information!

Puh: 040 5867444

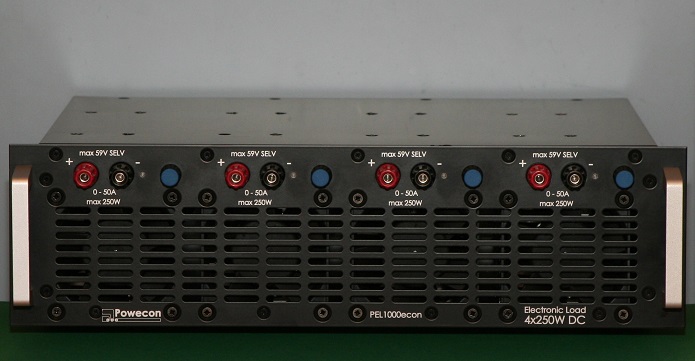

Load Racks

Model PWL1000econ 4x250W max60VDC 0-50A

See Specification: PWL1000econ_Specification

Low cost, very simple to use, 4 galvanic isolated load modules, 19" rack

Current setting by potentiometer, over temperature protected, over power protected

Very robust design and long life time (exellent for power supply reliability testing)

Load channels can be connected parallel

Fans are not running if temperature is enough low

230VAC 50-60Hz

To order. Not in stock.

Contact us for more information!

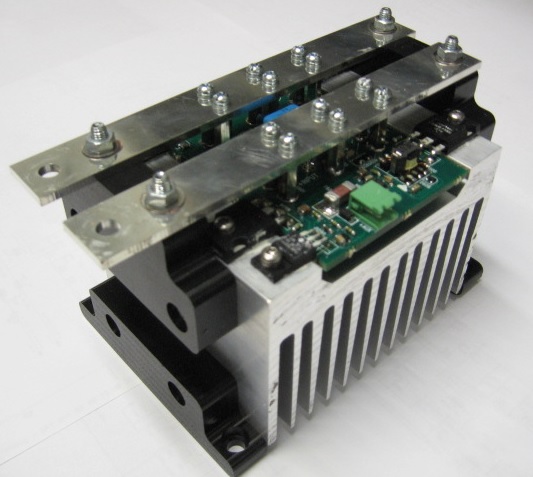

ORING-modules

Model PWO48-200 max60VDC 0-200A

See datasheet: PWO48-200_Specification

48VDC version is suitable for 24VDC, also 110VDC and 220VDC versions are possible on request

To order. Not in stock.

Contact us for more information!

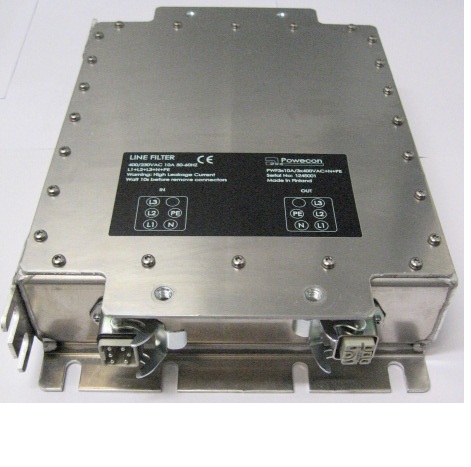

EMC-Filters:

3x16A+N+PE 400VAC 3-Phase Line Filter

Suitable for use with power sources, frequency converters and other line disruptive devices.

Effectively removes common-mode and differential disturbances as well as protection from surges and voltage spikes.

Possible use shielded cables and IP67 class

To order. Not in stock.

Nato-code: NSN 5915-58-000-6379

Datasheet: PWF3x16A_3x400VAC

Sine-filters:

3x3A+PE 400VAC 3-Phase Sinefilter for frequency converter use

Makes the frequency converter / inverter output voltage sinusoidal and effectively removes EMI noise.

To order. Not in stock.

Nato-code: NSN 5915-58-000-6380

Datasheet: PWFS3x3A_3x400VAC

Contact us for more information!

Both linefilter and sinefilter are in similar casing.

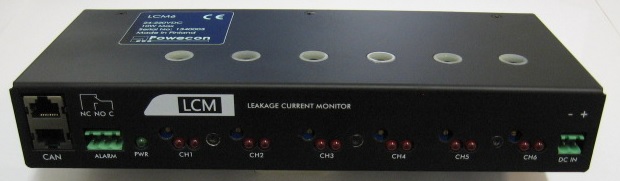

LCM6 LEAKAGE CURRENT MONITOR UNIT FOR DC

Model LCM6 Leakage current monitor unit

See datasheet: LCM6_Specification

6 Channel, 120mA alarm limit, Aux. voltage input range nominal 24-220VDC (Absolute maximum 18-265VDC)

Reinforced insulation from ALARM RELAY to aux. voltage and CAN-BUS

Reinforced insulation from CAN-bus to aux. voltage and ALARM RELAY

Exellent for: DC-Power systems, Solar systems, Marine and Industrial applications

Price per channel is very competitive

Floating systems are possible using LCM-EXT extension unit

To order. Not in stock.

Contact us for more information!




UWAPS-TINY Ultra wide input range power supply

Model UWAPS-TINY

Datasheet: UWAPS-TINY_Specification

Input voltage range 20-300VAC 45-66HZ or 18-420VDC it is possible to feed AC or DC to same input connector

Forced insulation, output voltage is floating from protective earth.

Exellent surge capability EN 61000-4-5 (Line-to-line �4kV, Line/N-to-PE �4kV)

Fullfil EMC EN55022B limits, both input and output conductive and radiated emissions

Exellent for: DC-Power systems, Solar systems, Marine and Industrial applications

Several output voltage variations 12V, 15V, 18V ja 24V, it is possible to customize.

Output power 10W

To order. Not in stock.

Contact us for more information!
